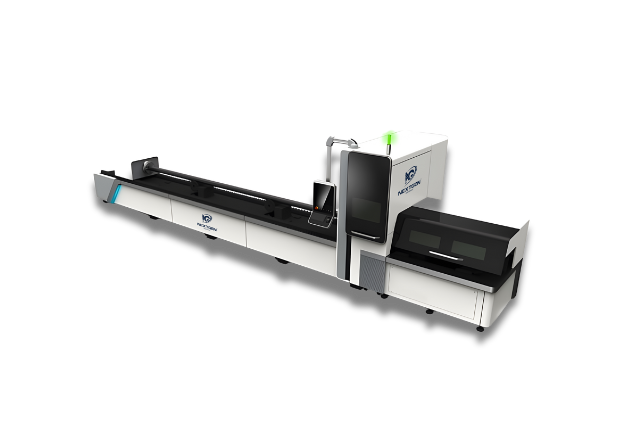

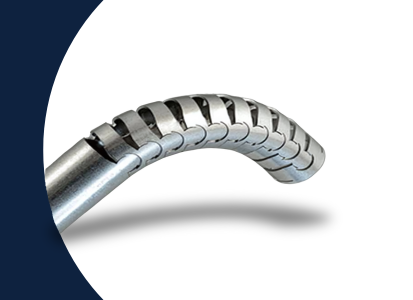

PROFESSIONAL TUBE CUTTING MACHINE
ProductKey Features
- MULTI DIMENSIONAL TUBE CUTTING
- FULLY AUTOMACTIC CENTERING CHUCK
- GOOD SEALING AND MOVEMENT CHARACTERISTICS
- EASY TO PROGRAMMABLE
Technical Parameters
| MODEL | NLT-160 TX | NLT-220 TX | NLT-230 TX | NLT-350 TX |
|---|---|---|---|---|
| Maximum length pipe | 6.3mtr | 6.3mtr | 6.5/9mtr | 6.5/9mtr |
| Pipe shape | Square tube/Round Rectangle Square tube | Square tube/Round Rectangle Square tube | Square tube/Round Rectangle Square tube | Square tube/Round Rectangle Square tube |
| Acceleration speed chuck feed axis | 1.0G | 1.0G | 1.0G | 1.0G |
| Acceleration speed laser head axis | 1.0G | 1.0G | 1.0G | 1.0G |
| Chuck running speed | 80r/min | 80r/min | 120r/min | 120r/min |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Maximum blanking length | 2mm | 2mm | 2mm | 2mm |
| Maximum pipe weight | 100kg 16kg/m | 200kg 30kg/m | 200kg 30kg/m | 500kg 80kg/m |
| Shortest remnant | 150mm | 150mm | 200mm | 200mm |
| Maximum speed of chuck axis | 92m/min | 92m/min | 120r/min | 120r/min |
| Maximum speed of laser head axis | 92m/min | 92m/min | 92m/min | 92m/min |
| Maximum acceleration speed of z axis | 60mm/min | 60mm/min | 60m/min | 60m/min |
| Tube Size Range | |||
|---|---|---|---|
| Model | Round | Square | Rectangular |
| NT-T220 | φ20-φ220mm | a20-a220mm | Long Sides ≤ 220mm |
| NT-T230 | φ20-φ220mm | a20-a220mm | Circumcircle Long Sides ≤ 220mm |
| NT-T350 | φ20-φ345mm | a20-a340mm | Circumcircle Long Sides ≤ 345mm |
